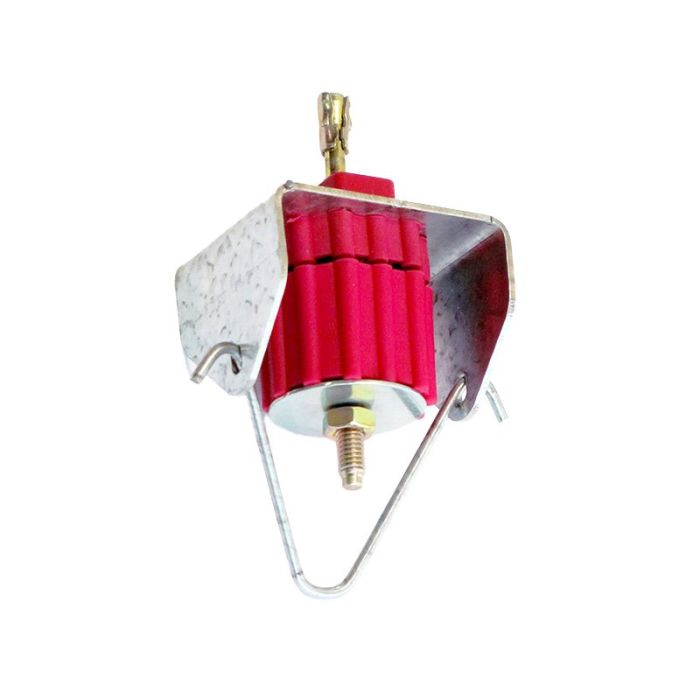

A326R - RESILMOUNT Static Deflection Direct-Fix Resilient Hanger

---

VIEW A326R Data Sheet View Resilmount Tech Manual NEW 2024! The Resilmount® A326R Static Deflection Direct-Fix Resilient Hanger is most suited to environments where excessive, unwanted noise is experienced, and highly sensitive acoustic environments. Typical installations include recording studios, airports, concert halls, high-rise apartments, performing arts centers, and multi-family developments.   Dynamic Characteristics Resilmount patented thermoplastic rubber outperforms standard rubber because of its unique natural absorbing characteristics. Resilmount unique sound cell design guards against structure borne vibrations transferring into the body of the Resilmount because of its strong column design providing a small percentage of contact surface area with the structure or substrate it is fastened to. This aids in absorbing and breaking up airborne sound at its transfer point.   Features

• Thermoplastic rubber outperforms and outlasts natural rubber.
• Uses Resilmount patented sound cell technology.
• Positive fixing to structure to reduce uplift during installation, maintenance and wind.
• Can be fixed to concrete, steel or timber structures.
• Provides total isolation from structure to ceiling system.
• Fail safe against failure of ceiling system in the event of a fire.
• Resilient element is locked into the bracket using Resilmount patented twist-lock technology so unintended dislocation of the element is impossible.

• Suitable for ceiling cavities greater than 9 27/32".
• Dynamic factor: 1.1
• Life performance: less than 3.5% creep per decade.
• In ceiling applications, always check load ratings with
• Resilmount engineers prior to installation.
• Load capacity: refer to chart on the right in linked data sheet
