SC62-5/97 Slide Clip 2X6X5 12GA 25 Pak W/Screws
$151.94
Simpson Strong-Tie products provide high-strength fastening and anchoring solutions for your construction project. Found a better price from a competitor? Contact us, we'll beat it!
SKU
SC62-5/97-KT25
Ideal for high-seismic areas, Simpson Strong-Tie® SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to anchorage versatility, the SC clips include "No-Equal" stamps at the center of the slots to ensure proper shouldered screw placement. SC connectors are manufactured using heavy-duty 10- and 12-gauge steel to provide exceptional resistance to in-plane seismic load.
- Material: 50 ksi
- Finish: Galvanized (G90)
- 25 count per box

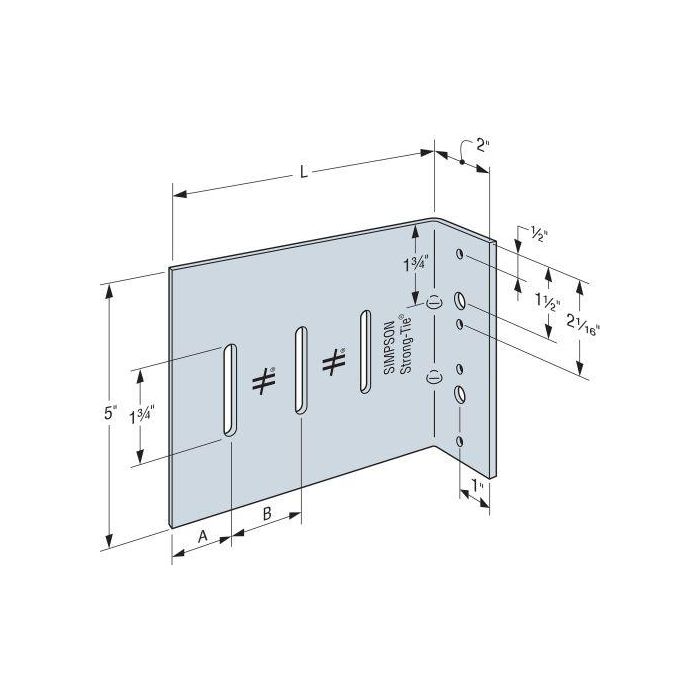

- The clips come in lengths of 3 1/2", 6" and 8" for use with 3 5/8", 6" and 8" studs, respectively
- The maximum standoff distance is 1" for 3 5/8" studs and 1 1/2" for 6"and 8" studs
- Provides a full 3/4" of both upward and downward deflection
- Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1 1/2"-long welds can be applied at the top and bottom of the clip
- Prepunched large-diameter anchor holes accommodate 1/4"-diameter concrete screws like the Simpson Strong-Tie Titen HD®
- Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157"-diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
- Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
- Use the specified type and number of anchors.
- Use the specified number of XLSH78B1414 #14 shouldered screws (included). Install the screws in the slots adjacent to the "No-Equal" stamps.
- Use one shouldered screw per slot (maximum).
Specification
| SKU | SC62-5/97-KT25 |
|---|---|
| Brand | Simpson Strong Tie, Ready Track |
