SCHA10.75-KT15 - 10.75 Horiz Sld Clip- Right W/SCVS - 15pak
$217.62
SKU
SCHA10.75-KT15

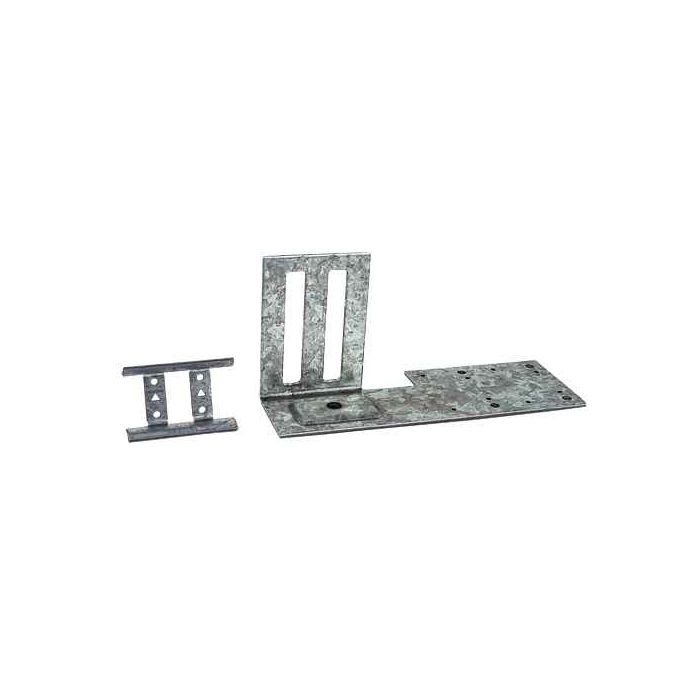

The SCHA connector is an ideal solution for panelized or stick-frame construction where the CFS framing anchors to the top of a concrete floor slab or the bottom of a steel beam. The connector features a wide support leg to decrease eccentricity on anchors and provide a variety of anchorage options. The included SCVS vertical slider helps to strengthen the connector for the highest tension (F2) and compression (F3) loads in the industry.
Key Features
- Provides a full 1" of both upward and downward movement
- Tabulated design values for anchorage help mitigate risk and provide ease of specification
- Either face of anchorage leg can be used against the support
- Accommodates standoff distances up to 4 3/4"
- Can be used with 3 5/8", 4", 6" and 8" studs
- Prepunched anchor holes accommodate 1/4"-diameter Titen HD® or other 1/4"-diameter concrete screw anchors, and 0.157"-diameter powder-actuated fasteners such as the Simpson Strong-Tie® PDPAT-62KP
- Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
- US Patent 10,273,679
Material
- SCHA — 118 mil (10 ga., 33 ksi); SCVS — 97 mil (12 ga., 33 ksi)
Finish
- Galvanized (G90)
Installation
- Use all specified fasteners and anchors. Note that the smaller-diameter anchor holes are provided for PAF installation, and the larger-diameter anchor holes are for 1/4"-diameter concrete screw anchors.
- Ensure that the SCVS vertical slider is centered in the SCHA vertical slots by aligning the tic-marks adjacent to the triangle holes on the slider with the ? stamp on the SCHA clip.
Ordering Information
- SCHA10.75-KT15 contains (15) SCHA 10.75 connectors and (15) SCVS/97 sliders
Specification
| SKU | SCHA10.75-KT15 |
|---|---|
| Brand | Simpson Strong Tie, Ready Track |
