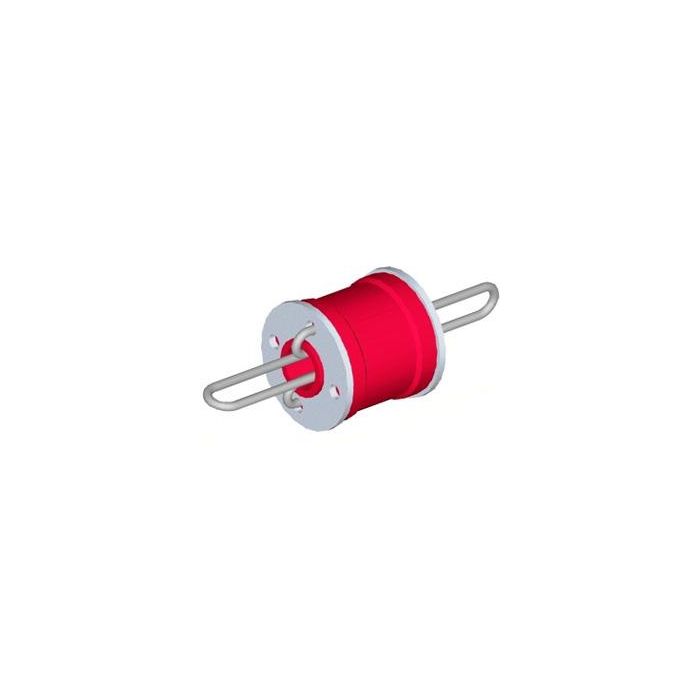

A50R-1 RESILMOUNT® Resilient BCD North America : Sound Isolation Hanger (65LBS)
- Easily works with all hanger wire, making it ideal for sound isolation ceiling hangers
• Easy installation into new or existing ceiling systems using vibration isolation hangers for acoustic ceilings
• Meets all standards and guidelines
• Does not reduce the load capacity of the ceiling system
• Suitably isolates the ceiling system from the structure to reduce structure-borne noise
• Elastomer Type: Natural Rubber
• Shore A Hardness: 65
• Load capacity: 65 lbs
1000+ Call for your project discount
Tiered Discount Applied On Final Checkout
- Buy 100 for $3.15 each and save 4%
- Buy 500 for $3.00 each and save 9%
View Product Datasheet View Resilmount Brochure View Installation Instructions View Resilmount Tech Manual NEW 2024! View Resilmount Product Compare Chart Resilmount A50R is specifically designed for the support and acoustical isolation of internal suspended ceiling systems. Features
- Easily works with all hanger wire
- Easy installation into new or existing ceiling systems
- Meets all Standards and guidelines
- Does not reduce the load capacity of the ceiling system
- Suitably isolates the ceiling system from the structure to reduce structure-borne noise
- Elastomer Type: Natural Rubber
- Shore A Hardness: 65
- Load capacity: 65 Lbs.
Dynamic Characteristics
Rubber mounts differ from spring mounts in that the natural frequency is a function not only of the deflection but also of the rubber hardness. The noise absorption properties of the Resilmount A50R allow it to perform effectively as vibration isolation hangers for acoustic ceilings, deflecting 3/16” when loaded to 110 lbs in accordance with American standards. This performance provides optimal isolation of transferred noise, making it suitable for sound isolation ceiling hangers in demanding ceiling applications.
Installation Notes
When selecting hangers, it is recommended that the calculated mass of the ceiling system is increased by 10–20% to avoid overloading of the isolation element. For projects requiring maximum rated deflections, the ceiling system should be accurately weighed and point loads assessed in accordance with architectural specifications.
The site contractor can undertake normal installation procedures of the suspended ceiling system. Once the hanging rod has been installed from the substrate, the lower end of the rod should be bent in accordance with the ceiling system manufacturer’s specifications, creating a hook on which the Resilmount A50R-1 sound isolation ceiling hangers can be mounted.
Once the mount is in place, another section of hanging rod is bent and inserted through the lower side of the Resilmount A50R-1. The shaft of this rod then becomes the mounting point for the ceiling suspension clip, completing the installation of vibration isolation hangers for acoustic ceilings.
| SKU | A50R-1 |
|---|---|
| Brand | Resilmount |
