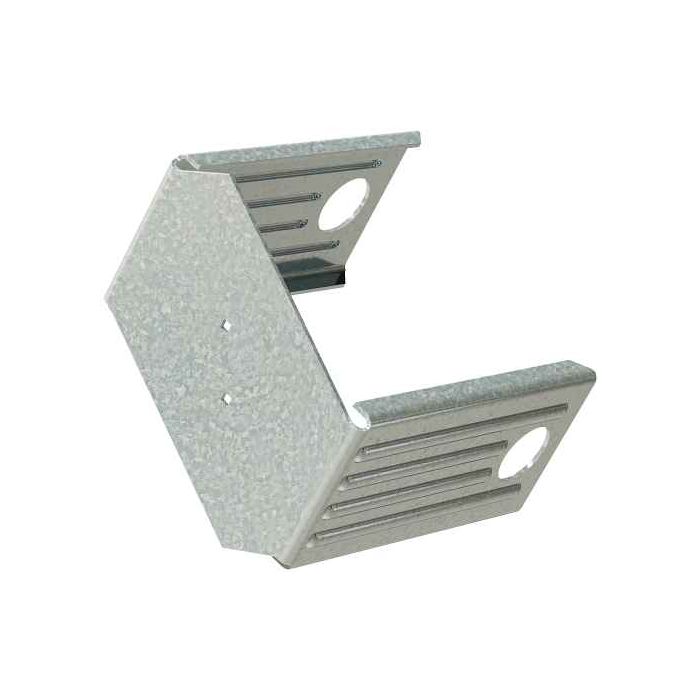

ICFVL6 - Steel Ledger Connector ICF Form 6" Legs

Product Details

• The ICFVL ledger connector system is designed for mounting wood or steel ledgers to insulated concrete form (ICF) walls up to 4 1/2" thick, as specified by the designer.

• ICFVL6 supports ICF walls up to 3 1/4", while ICFVL8 supports up to 4 1/2".

• Engineered for both vertical and lateral in-plane performance.

• Offers advantages over traditional anchor bolting, including faster installation, improved on-center spacing, and no protrusions.

• The embedded legs (6" on ICFVL6; 8" on ICFVL8) include embossments for added stiffness, and a center hole that allows concrete to flow around the connector.

• The exposed flange on the ICF face provides a structural surface for mounting a wood ledger.

• Note: For wood ledger applications, the ICFVL-W or ICFVL-CW is required (sold separately).

• Case quantity: 15

• Two size options for ICF wall forms up to 4 1/2" thick

• Embossed embedded legs for increased stiffness

• Two diamond-shaped center holes for screw placement during pour and for proper alignment
  (Center screws must be removed before installing the ledger.)

Material
14 ga. (68 mil)

Finish
Galvanized (G90)
