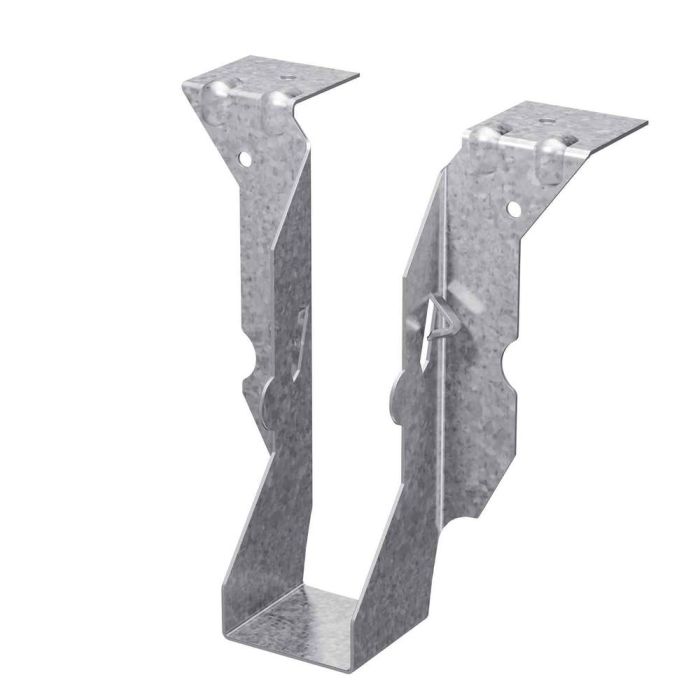

LB28 2X8 Top Flange Joist Hanger
$5.33
Simpson Strong-Tie products provide high-strength fastening and anchoring solutions for your construction project. Found a better price from a competitor? Contact us, we'll beat it!
SKU
LB28
Simpson Strong-Tie LB hangers are 14 gauge top mount hangers that are cost effective hangers featuring a min/max joist nailing option. Min Nailing featuring Positive Angle Nailing targets moderate load conditions whereas the Max Nailing generates capacities for higher loads. The unique two level embossment provides added stiffness to the top flange. The Strong-Tie LB28 top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Specs
- Height: 7-1/4"
- Joist Size: 2X8
- Thickness: 14 Gauge
- Width Spec: 1-9/16"
- Use all specified fasteners..
- May be welded to steel headers with weld size to match material thickness. The minimum required weld to the top flanges is a 2" fillet weld to each side of each top-flange tab. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated (see General Instructions for the Installer, note k, for welding information). Weld-on applications produce the maximum allowable download listed. For uplift loads, refer to technical bulletin Top-Flange Hangers Welded to Structural Steel Members (T-C-WELDUPLFT).
- Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.
Specification
| SKU | LB28 |
|---|---|
| Brand | Simpson Strong Tie, Ready Track |
